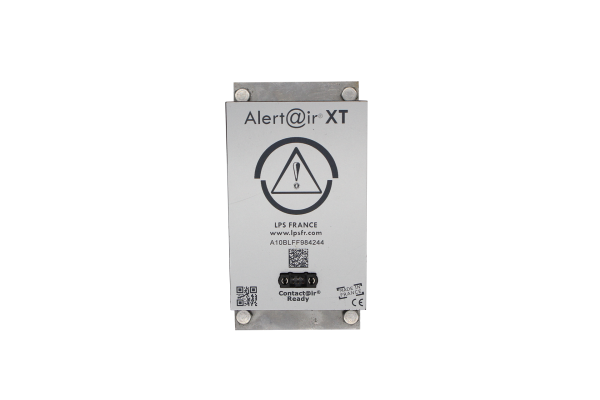

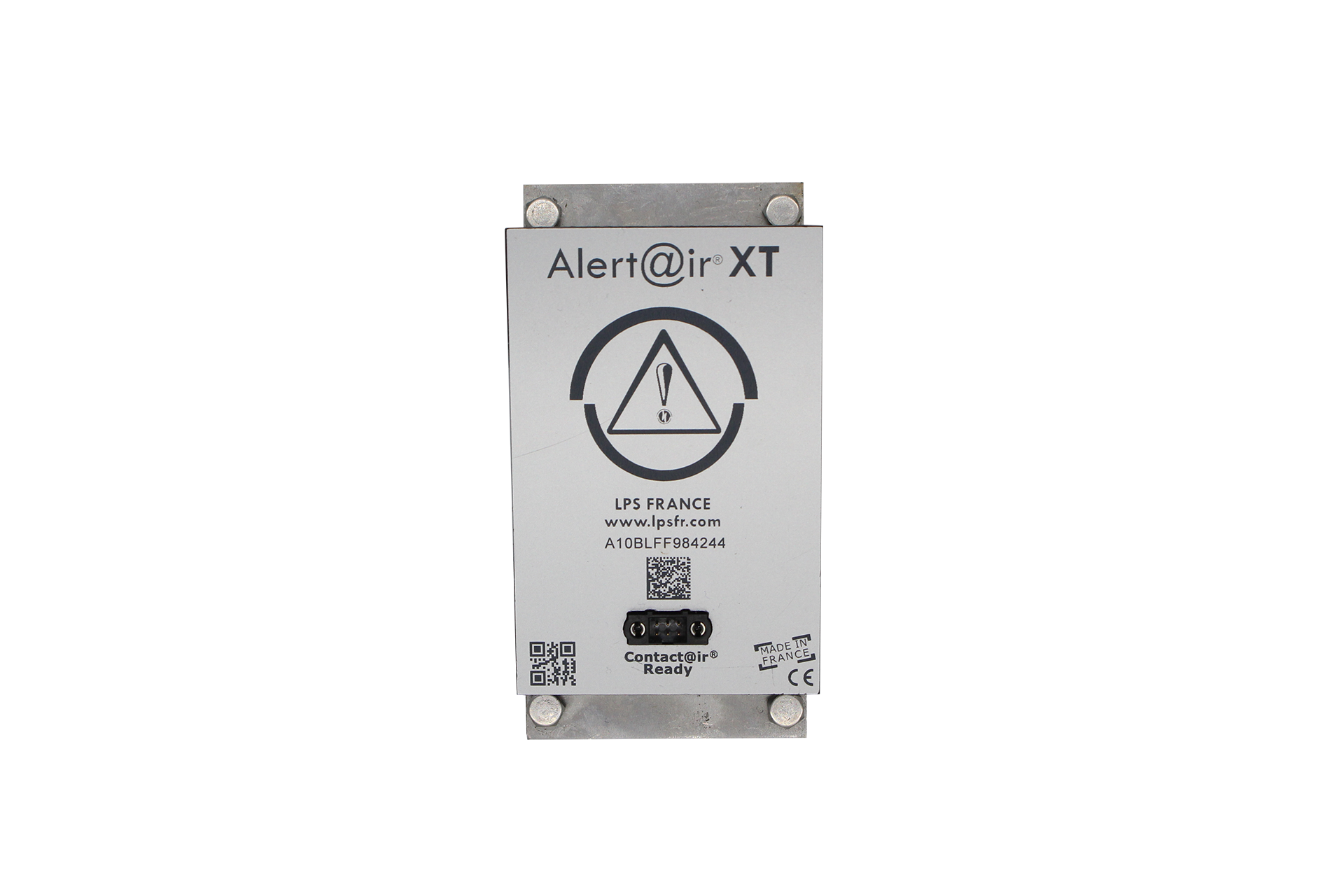

Alert@ir XT®

  • Ref. 50014/ALRXT
  • Real-time alert during a lightning strike
  • Works without power supply
  • Can be positioned on all types of existing conductors (flat, round, etc.)
  • Option: Communication Contact@ir System
  • Dimensions: 70x50x60 mm
  • Weight: 0,336kg


Compliance with NFC 17-102:2011 and IEC 62305 standards and equivalent country standards

Download the documentation in French

Download the documentation in English

Download datasheet

Add to quote


Placed on a lightning protection grounding conductor, the system Alert@ir XT®sends a real-time alert via the Internet during a lightning strike using our range of transmitters and receivers Contact@ir® System.

If one of your installations is hit by lightning, you receive an alert immediately. The intensity level of the lightning strike is indicated to you on a scale of 1 to 3. It is thus possible to know the type of verification necessary to carry out, the degree of urgency of intervention and to organize maintenance in order to preserve protected structures.

The NFC 17-102 standard requires a verification of your lightning protection installation each time the protected structure is hit by lightning (art. 8.2). This provision aims to ensure the effectiveness of your protection installation without interruption. This is why the simple fact of receiving a lightning alert should lead you to check the integrity and proper functioning of your product on the server. or on the LPS Manager application. Product of the range Contact@ir® Ready.

Further information

Weight 0,336 kg
Dimensions 70x50x60mm
